FreedomPlay™

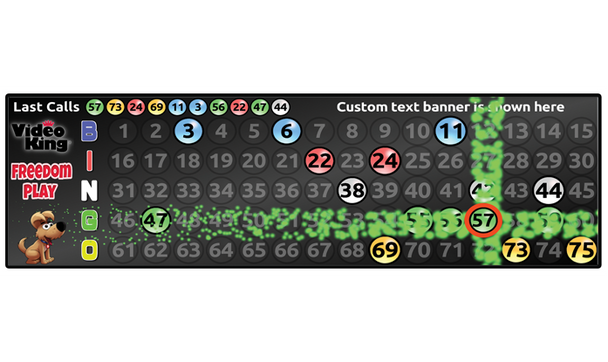

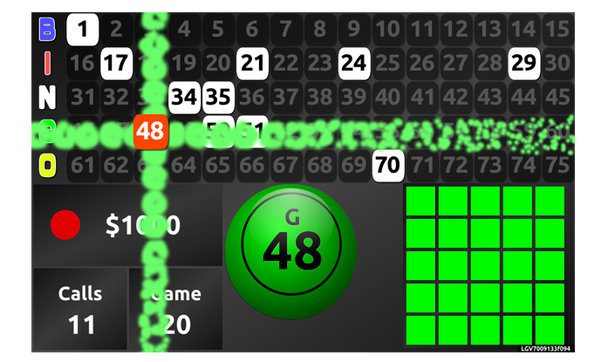

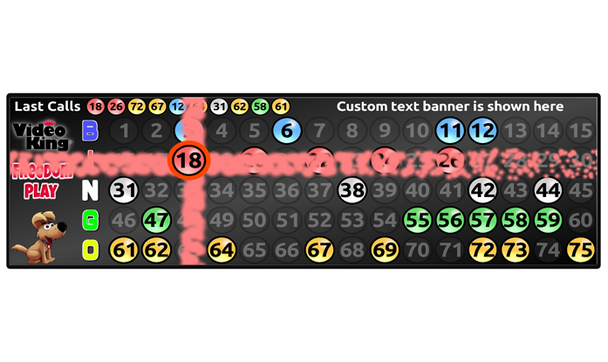

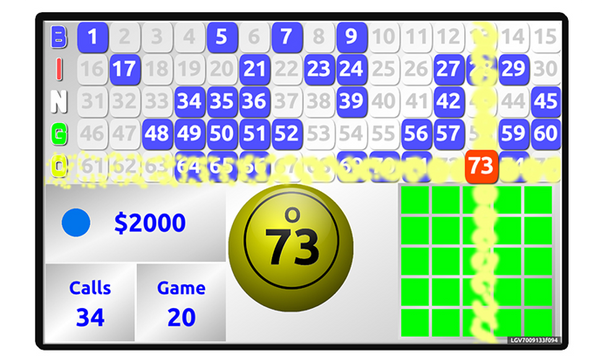

Touted as the next generation of digital flashboards, FreedomPlay,™ a customizable, wireless bingo flashboard – using state-of-the-art gaming technology – is a cost-effective solution to traditional wallboards.
Ideal for multi-media presentations and promotions, FreedomPlay includes seven flashboard themes, dynamic imagery, flashing last number called, configurable layouts and other novel features, all designed to captivate and entertain bingo crowds.
Free from excess wiring, equipment and maintenance costs, it can be displayed as session bingo or Bonanza board, on any make, model, dimension and number of televisions, with an HDMI port, standard for video transmission.
User-friendly and easy to install, FreedomPlay includes software and a small device that plugs into each Wi-Fi-enabled TV, supplied by customers.
FreedomPlay can be installed on all Video King’s PowerPlay consoles, equipped with 5.3.0.17 software, as well as, integrates with the VeriPowerPlay,™ Video King’s laptop verifier.
This dynamic solution couldn’t be simpler.

Key Features
• State-of-the-art, wireless technology
• 7 standard display themes
• Layouts can be customized to fit a hall’s needs
• Pricing is based on position
• Software has capability to do promotions on each TV
• Displays last 10 balls called in sequence
• Customizable text banner, which can be changed on the fly
• Moving animation highlighting the ball call
• Color coordinated to indicate the letter association
• Modify central banner to customize board with your logo
• If desired, standard Ethernet cable can be run to each TV for added stability
• Small device plugs into TV for smaller footprint
• Can be used on any size TV or monitor
• Vivid, high-resolution, graphics and animation
• Site specific control features with VK Secure
• Ability to display as bonanza board or session game

What type of TV requirements are there?
Must have HDMI input. Other than that, there are no other requirements.

Are there any power requirements?
Each position should only require a power outlet for the TV itself and the stick.

What are the software requirements?
Minimum of 5.3.0.17 e-Bos™.

What are the system requirements?
The wireless system can run on any Video King console, equipped with PowerPlay™ software, which meets the following requirements:

• Series 16 or above PowerPlay desk.
• Server software 2012 or 2016 for networked environments.
• Minimum e-Bos version 5.3.0.17.
• Minimum Windows 7 or 10.
• The system can also be hard-wired, via a Cat 5 cable.

Part Numbers

• 1036T300-B: Freedom Stick. Each TV requires one of these. For example if you want a 1×3 display = 3 each 1036T300-B.

• 1013D024: Adapter, USB to Ethernet. Each TV requires one of these. For example if you want a 1×3 display = 3 each 1013D024.

• 1036T301: Access Point. Only needed per each location. If an existing handset location, they will not need another one. If we are installing new handsets with this Freedom Play, it is recommended to use access point Part No. 192463.

• 004000-1015-A: Access Point Power Supply. One needed for each access point. If using a switch, this is not required. If using this part, one is needed for each access point.

• 192462-B: POE Switch. One needed per location. Not needed if using an access point power supply. This part will run multiply access points.

Additional Variable Hardware Requirements

• 1036T301: Access Point. Only needed per each location. If an existing handset location, they will not need another one. If we are installing new handsets with this Freedom Play, it is recommended to use Access Point Part No. 192463.

• 004000-1015-A: Access Point Power Supply. One needed for each access point. If using a switch, this is not required. If using this part, one is needed for each access point.

• 192462-B: POE Switch: One needed per location. Not needed if using an access point power supply. This part will run multiply access points.

To learn more, please call us at (800) 635-9912 or e-mail marketing@vkge.com.
